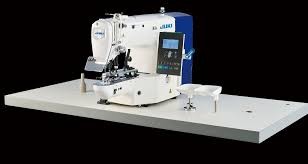

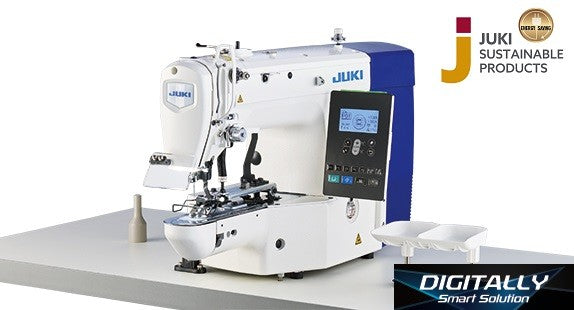

JUKI LK-1903C Direct Drive Lockstitch Button Sewing Machine
Sale price
₹399,093.75
Regular price
₹464,062.50
Taxes included.
Free Installation
1-2 Year Warranty
24/7 Support
Authorized Dealer
Free Installation
We provide complimentary professional installation services for all our products. Our certified technicians will ensure your product is installed correctly and safely.
1-2 Year Warranty
All products come with a comprehensive 1-2 year warranty covering manufacturing defects and workmanship. We stand behind the quality of our products.
24/7 Support
Our dedicated customer support team is available around the clock to assist you with any questions or concerns. Contact us anytime via phone, email, or chat.
Authorized Dealer
We are an officially authorized dealer, ensuring you receive genuine products with full manufacturer support and warranty coverage.
Key Features:
- High-Speed Button Sewing: Max speed of 2,700 stitches per minute improves productivity.
- Direct Drive Motor: Energy-efficient AC servo motor for quick start-up and low vibration.
- Digital Control Panel: Intuitive interface for selecting and managing sewing patterns.
- Cycle Sewing Function: Supports automatic cycle sewing for continuous operation.
- Supports Various Button Types: Compatible with flat buttons, shank buttons, and wrapped shank buttons.
- 50 Built-in Patterns: Additional patterns can be loaded via USB for customization.
- Automatic Thread Trimming: Clean finishes and time-saving trimming after each cycle.
- Quiet Operation: Low vibration and noise, ideal for long working hours.
- USB Port & Data Storage: Enables pattern import/export and system updates.
Technical Specifications:
| Specification | Details |
|---|---|
| Model | JUKI LK-1903C |
| Max Sewing Speed | 2,700 stitches/min |
| Max Stitch Length | 4.0 mm |
| Button Size Range | 8 mm – 20 mm |
| Needle Type | DPx17 (#14 standard) |
| Needle Bar Stroke | 41.2 mm |
| Motor Type | Direct Drive AC Servo Motor |
| Work Clamp Drive | Pneumatic |
| No. of Built-in Patterns | 50 (expandable via USB) |
| Thread Trimming | Automatic |
| Lubrication System | Minimum oil lubrication |
| Power Supply | 220V, Single Phase |
| Machine Head Weight | Approx. 42 kg |
❓ Frequently Asked Questions (FAQs):
Q1. What types of buttons can I sew with the JUKI LK-1903C?
A: It supports flat buttons, shank buttons, and wrapped shank buttons.
Q2. Can this machine handle high-volume production?
A: Yes, it's built for industrial use with high-speed performance and cycle sewing functionality.
Q3. Is it possible to load custom patterns into the machine?
A: Yes, additional patterns can be added using the USB port.
Q4. Does it require a compressor?
A: Yes, the pneumatic work clamp requires an external air compressor.
Q5. Is it noisy during operation?
A: No, the direct drive system reduces both noise and vibration significantly.
